SLLHUT 1 Pc 24V 28W 4000K Natural White Flexible Cuttable LED Sheet, 19.2 x 9.6 Inch Sheet Lights LED for Countertop and Wall Backlit, with Connectors and Adhesive Backing (Natural White 4000K)

Price: $29.99
(as of Jan 29, 2025 01:51:20 UTC – Details)

This flexible LED sheet emits 4000K natural white light with no dark areas. With a high CRI of 90+, the luminous effect is excellent. Surface-mounted connectors allow these sheets can be interconnected to backlight large areas such as translucent table tops, walls and ceilings.

Specifications:
Light Color: 4000K Natural White
Sheet Size: 490mm(L)X245mm(W)X8mm(H) / 19.2”(L)X9.6”(W)X0.3”(H)
LED Chip: SMD 2835
LED Quantity: 242 LED Chips
Input Voltage: DC24V
Working Power: 28W per Sheet
Current: 1.16A
Cut Unit: 1 LED (0.87″x 0.87″)
Waterproof Rating: IP20
Luminous: 2800Lm/m
CRI: 90+
Lifespan: 50,000+hours

Listing:
1 pc 4000K natural white LED light sheet (L19.2 x W9.6 x H0.3 inches)
2 pcs 150 mm long connecting wires
2 pcs 50 mm long connectors
8 pcs screws
8 pcs screw shims
8 pcs 8mm anti-collision silicone pads
Please note that power transformer and controller are not included.

Usage and Instructions:
1.Measure the size of the board you want to paste LED backlight sheet on, and determine the size and quantity of LED sheets you need to purchase accordingly.
2.Connect LED sheet lights together by wire or connector
3.Choose right power supply and controller for LED panel sheet.
Principle: The voltage of the power supply should be the same as the voltage of LED sheet. And the driver wattage should be 1.2 times the the total wattage of LED sheets.
For example, when you need to power 4 pieces of 24V 28W LED lighting sheets, the voltage of power supply should the same, also 24V. And the total wattage of 4 pieces 28W LED sheets is 4pcs x 28W=112W. So the wattage of power supply will be 112W x 1.2=135W. (Or a little bit above)
Recommend WB5 model to adjust brightness.
4.Connect power supply and controller to LED light sheet panel, turn them on and ready for use.

Note:
1.Please operate the connection while the power is off.
2.Please make sure that the working environment is clean and dry.
3.Please kindly prepare a 24V power transformer in advance, as it is not included.
4.If you need to adjust brightness of this sheet LED, a dimmer is necessary.

Product Dimensions ‏ : ‎ 19.2 x 9.6 x 0.3 inches; 10.86 ounces
Item model number ‏ : ‎ FLS-24V-RGBCCTX288
Date First Available ‏ : ‎ March 12, 2024
Manufacturer ‏ : ‎ superlightingled
ASIN ‏ : ‎ B0CXSN63R3
Country of Origin ‏ : ‎ China

【Excellent Luminous Effect】LED sheet lighting emits a 4000K natural white light with a high CRI of 90+. The double-layer FPC material ensures steady and flicker-free illumination without dark areas. This sheet LED is usually placed behind translucent materials for backlighting effects. An additional dimmer is required for brightness control.

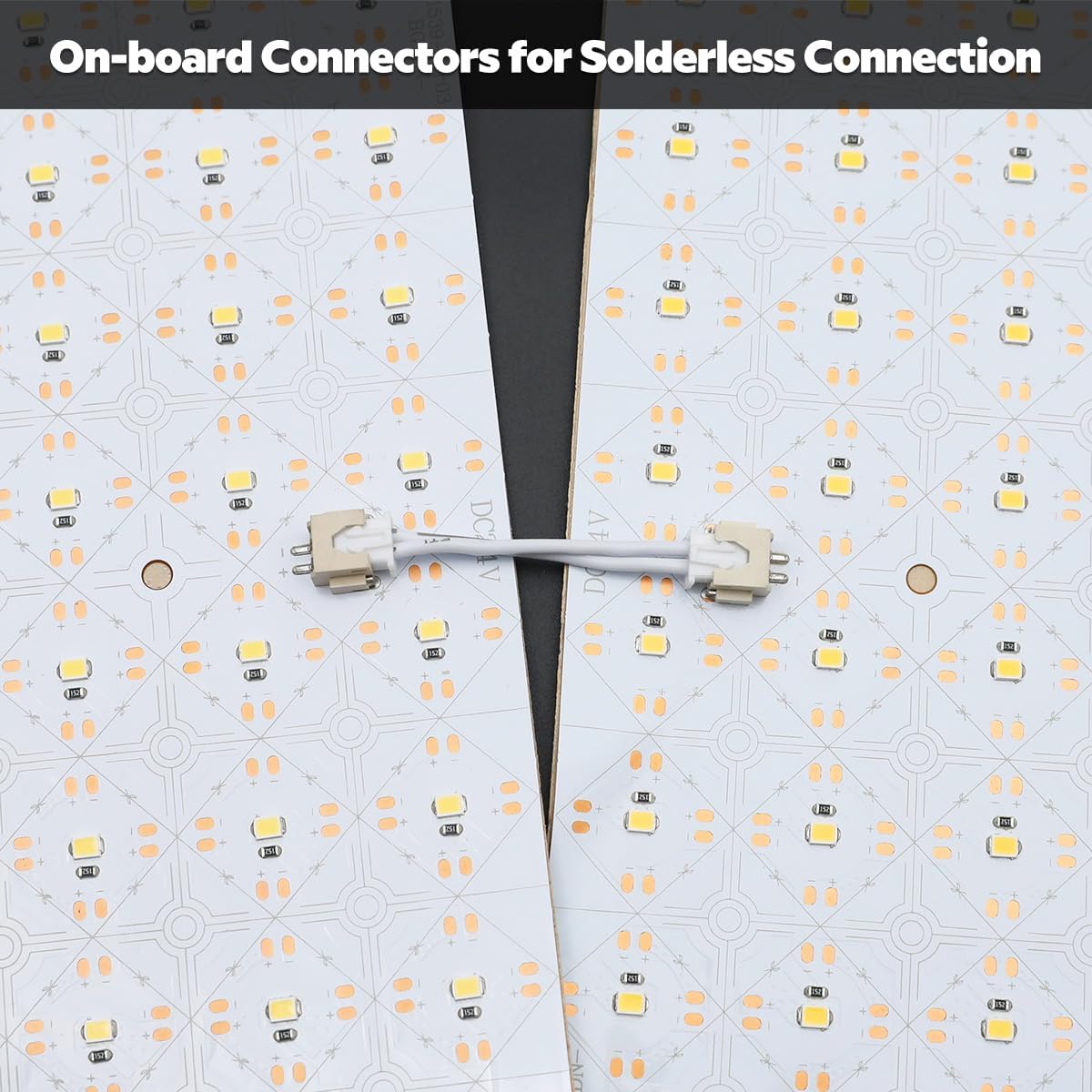

【Connectable for Large Area Illumination】Each LED sheet measures 19.2 x 9.6 inches. Several light sheets can be interconnected to illuminate large spaces like ceilings, walls and countertops. For quick and solid connections, there are 10 plug-and-play connectors mounted on top of each LED light sheet panel. This is ideal for users without specialized soldering skills. Up to 3 sheets can be connected in series with 1 on-board connector (8mm high).
【Cut to Size Easily】242 pcs of 2835 SMD chips are embedded on each LED light sheet, and each LED chip can be cut individually with scissors. Horizontal, vertical and diagonal cutting guidelines are marked on the board for easy trimming. Customize these sheets to special sizes or unique shapes for your own needs.
【Flexible, Bendable, and Foldable】This flexible LED sheet needs a 24V input voltage, and can be bent or folded. You can fit it to a curved surface, or fold it at 90 degrees to fit a square corner. With strong adhesive backing and screw hole design, the sheet is easy to install, not easy to fall off.
【With Accessories, Indoor Use】We provide free accessories, including 2 connection pieces, 2 wires, 8 impact-resistant silicone particles, 8 screws and 8 screw shims for better connections and installations. The waterproof rating of this LED light sheet is IP20, so please use it in a dry indoor environment.
