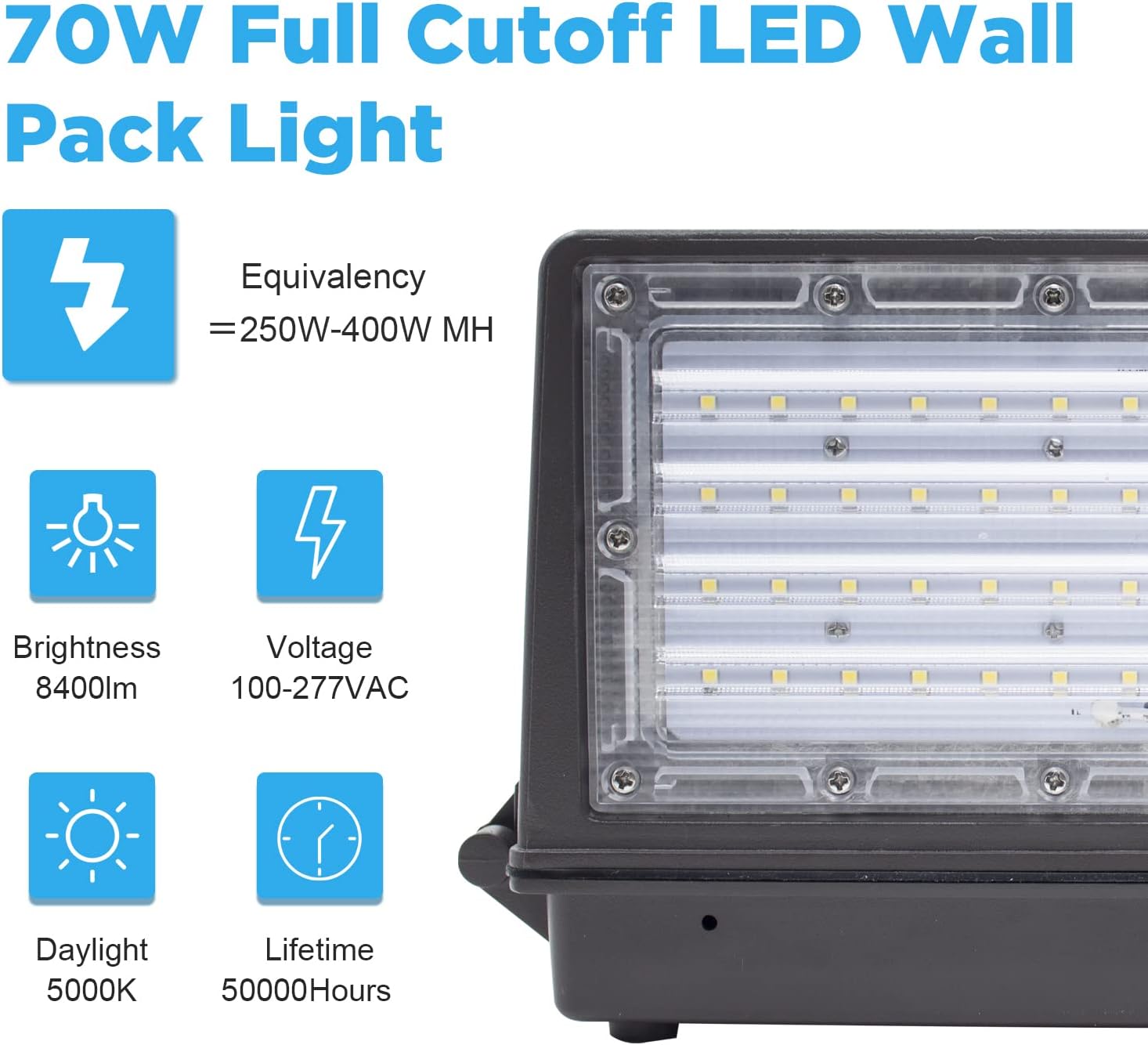

LED Full Cutoff Wall Pack, 70W(600W Eqv.) 8,400LM 5000K with

Product Overview

The LED Full Cutoff Wall Pack delivers powerful, energy-efficient illumination with a sleek and durable design. Engineered for both commercial and residential outdoor use, this 70-watt fixture produces 8,400 lumens—equivalent to a 600-watt metal halide bulb—while reducing energy consumption by up to 80%. Its full cutoff design minimizes upward light spill and glare, making it ideal for lighting walkways, parking areas, and building exteriors where directional control and compliance with dark-sky standards are important.

Equipped with a built-in dusk-to-dawn photocell sensor, the light automatically turns on at sunset and off at sunrise, providing hands-free operation and enhanced convenience. Constructed from heavy-duty aluminum housing and featuring an IK08 impact-resistant polycarbonate lens, it is built to withstand harsh weather and physical stress. The unit is ETL approved and backed by a 5-year warranty, ensuring reliable performance and long-term value for users seeking dependable outdoor lighting solutions.

Key Features

• ETL Approved: Meets rigorous safety and performance standards for indoor and outdoor electrical fixtures, ensuring reliable and hazard-free operation.
• High-Efficiency LEDs: Utilizes high-performance LM80 SMD3030 LEDs that deliver 8,400 lumens of bright, consistent light from just 70 watts—achieving an impressive 120 lumens per watt efficiency.
• Dusk-to-Dawn Photocell Sensor: Integrated ambient light sensor enables automatic on/off functionality, eliminating the need for manual switching and improving energy savings.
• Durable Construction: Features a die-cast aluminum heat sink with powder coating and a shatter-resistant PC lens, delivering excellent thermal management and resistance to corrosion, water, and impacts.
• Full Cutoff Design: Prevents upward light trespass and reduces glare, supporting compliance with dark-sky initiatives and minimizing light pollution in sensitive environments.
• IP65 & IK08 Rated: Protected against dust ingress and low-pressure water jets (IP65), and rated IK08 for impact resistance, making it suitable for wet, exposed, or industrial locations.
• Long Lifespan & Warranty: Delivers up to 50,000 hours of service life and includes a comprehensive 5-year warranty, backed by responsive customer support available 24/7.

Technical Specifications

• Wattage: 70W
• Input Voltage: 100–277VAC
• Driver Type: High-performance LED driver
• Power Factor: >99%
• Total Harmonic Distortion (THD): < 20%
• Color Rendering Index (CRI): Ra > 70
• LED Type: LM80-certified SMD3030 LEDs
• Operating Temperature: -30°C to +50°C (-22°F to +122°F)
• Color Temperature: 5000K (cool white)
• Housing Material: Aluminum
• Lens Material: Polycarbonate (PC)
• Ingress Protection: IP65
• Impact Rating: IK08
• Rated Life: 50,000 hours
• Warranty: 5 years
• Package Dimensions: 35.5 × 17.5 × 23.5 cm / 13.98 × 6.89 × 9.25 inches
• Gross Weight: 2.08 kg / 4.60 lbs

Benefits & Use Cases

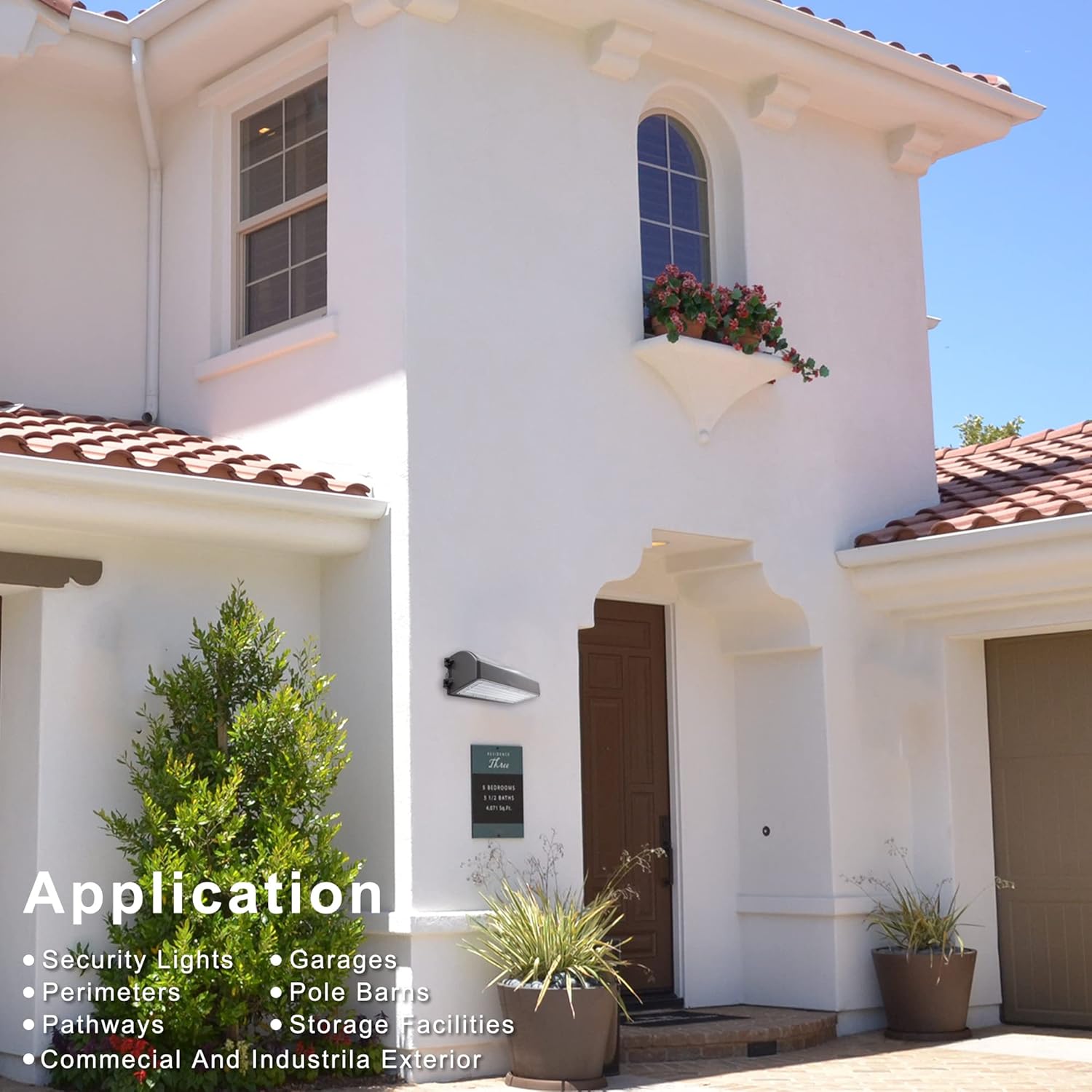

This LED wall pack is engineered for maximum effectiveness across a wide range of outdoor applications. Its full cutoff optics ensure light shines downward only, making it perfect for illuminating entryways, parking lots, alleys, garages, and building facades without contributing to skyglow or disrupting nearby residents. The automatic dusk-to-dawn operation enhances convenience and security, as the light activates precisely when needed.

Suitable for use in wet locations, farm buildings with non-corrosive atmospheres, commercial warehouses, retail storefronts, pathways, and yard lighting, the fixture’s IP65 and IK08 ratings confirm its resilience in challenging environments. The robust aluminum housing resists corrosion and withstands temperature extremes from -30°C to +50°C, ensuring stable performance year-round.

With a luminous efficacy of 120 lm/W, this 70W unit effectively replaces older, less efficient 420W metal halide fixtures, delivering brighter illumination while slashing energy bills by up to 80%. Over its 50,000-hour lifespan, users benefit from reduced maintenance and replacement costs, supported by the included 5-year warranty for added peace of mind.

Important Notes

This product is designed for outdoor use only and must be installed according to local electrical codes and manufacturer guidelines. The inclusion of a photocell means the fixture will automatically cycle on at dusk and off at dawn; no additional wiring or controls are required. For best results, install in locations where ambient light levels allow proper sensor function.

The package includes one LED wall pack light; mounting hardware may be required separately depending on installation surface. Always power down during installation to ensure safety. The ETL listing confirms compliance with North American safety standards for wet location applications.
